About the Dymola Component

The component reads a Dymola .txt input file and .txt/.mat output file. Using these files, the Dymola component generates a list of input and output parameters for Isight to use. Once this parameter list is generated, you can:

• Update input parameter values in a Dymola .txt input file from the component editor without launching the Dymola software.

• Map input and output parameters from the Dymola model to Isight parameters by selecting parameters from the generated list.

  The Dymola component works only on Windows operating systems.

  You can use Isight process components (such as DOE and Optimization) to iterate through the design space and optimize the model.

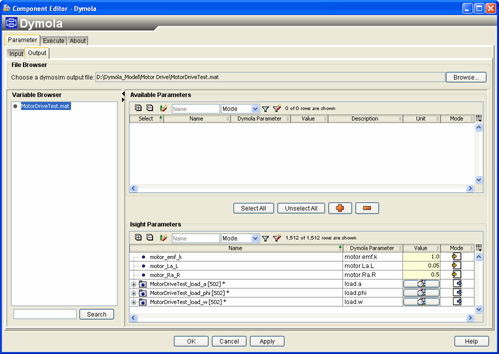

The figure below shows the Dymola Component Editor:

To start the Dymola Component Editor, double-click the Dymola component icon . When you have finished configuring the Dymola Component Editor, click OK to close the editor. For more information about inserting components and accessing component editors, see Working with Components in the Isight User’s Guide.
