Starting Tosca Structure.report in Tosca Extension for ANSYS® Workbench

This task shows you how to generate a report in Tosca Extension for ANSYS® Workbench.

There is no need to use Tosca Structure.report when calculating with Tosca Extension for ANSYS® Workbench.

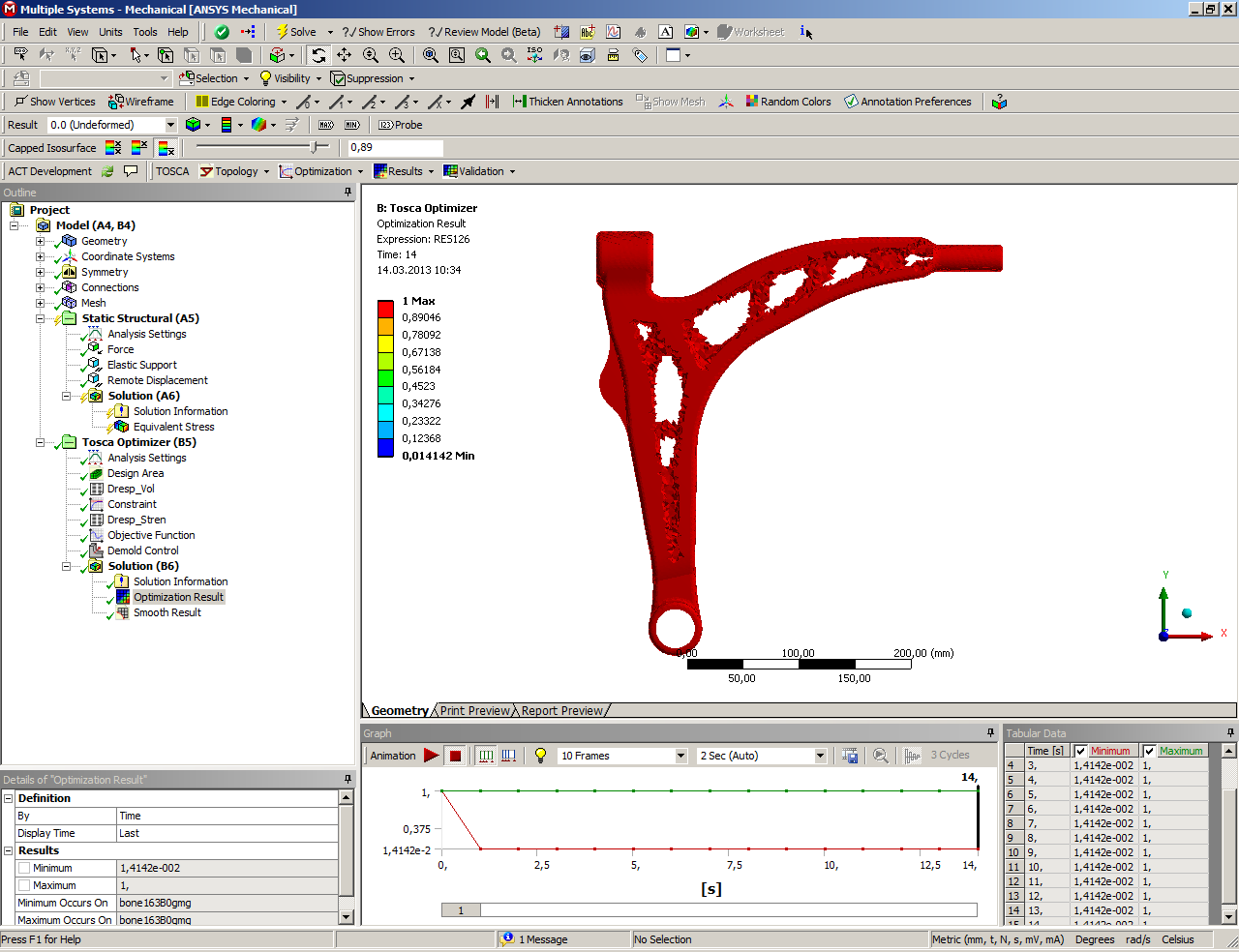

  1. All optimization and smooth results are provided within the Mechanical application:

  2. To display an iteration animation, use the standard graph window within the Mechanical application.

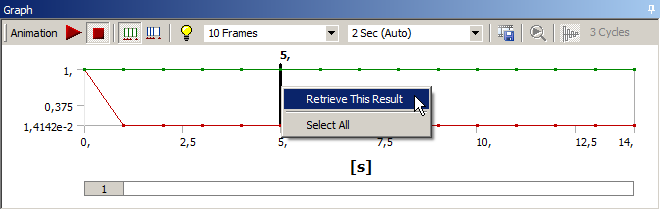

  3. To display single iteration steps, right-click in the Graph’s table and select Retrieve this Result as shown in the following figure:

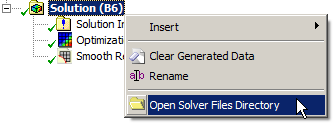

  4. Tosca Structure.view can be used since a vtfx-file is generated automatically during the optimization run. It is saved in the SIMULIA Tosca Structure folder of the work directory. To find it, right-click on Solution and select Open Solver Files Directory, then go to the folder tosca\TOSCA_POST.
